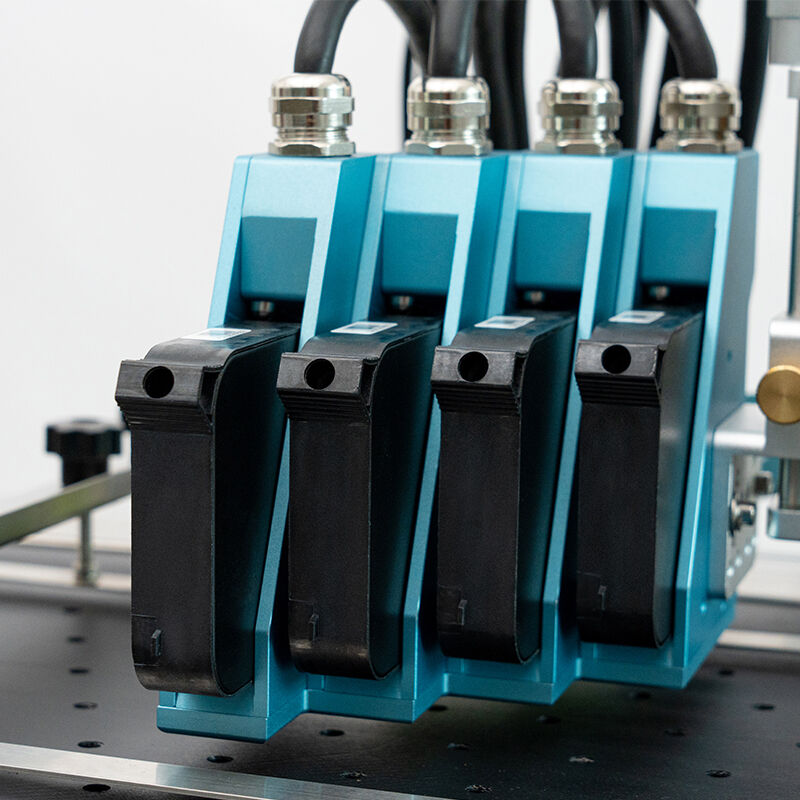

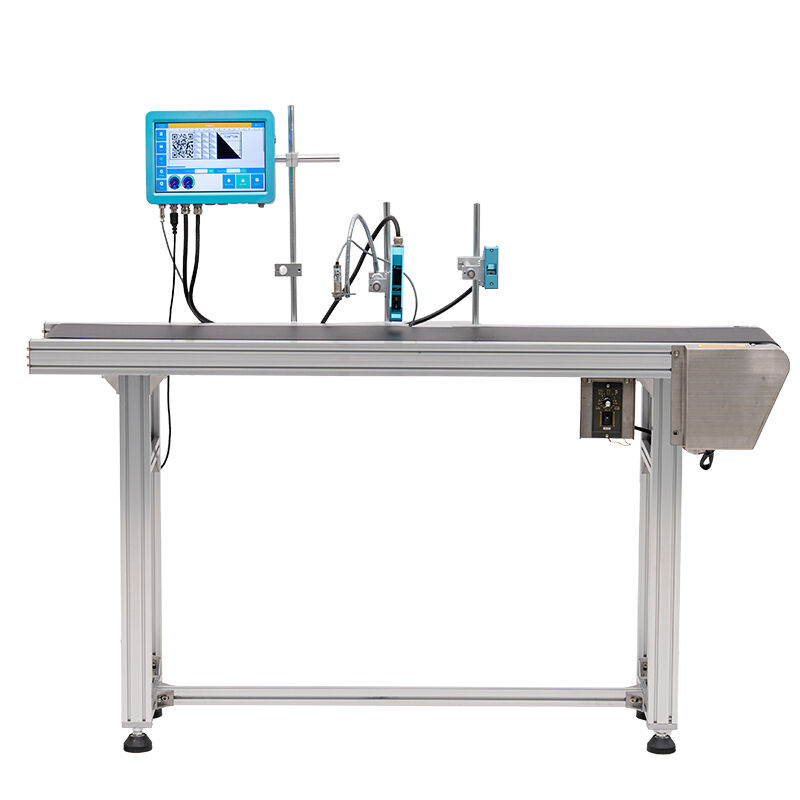

The Inkminic F140 Online TIJ Continuous Inkjet Printer delivers high-resolution, maintenance‑free industrial coding for production lines. It prints sharp dates, batch codes, barcodes, QR codes, logos and text on plastic, metal, glass, carton, film and other materials at high line speed. Featuring easy integration, user-friendly operation, fast-drying ink and stable long‑run performance, it minimizes downtime and boosts efficiency. Widely used in food, beverage, cosmetics, electronics and packaging for reliable, consistent marking.
|
Technical Parameters Printing Parameters |
Machine Parameters Operating system Embedded Linuxoperating system |
|||
|
Nozzle type Printingaccuracy Printingheight Printingcontent Printingmaterial Ink type Ink color Inkcartidgechip |
TIJ2.5 thermal nozzle 150dpi low resolution and 300dpi high resolution optional,maximum speed 60m/min,adjustable printing grayscale1-6levels Minimum printing 1mm,maximum printing height 12.7mm(the best quality distance between the nozzle and the printing surface is 1-2mm) Multilingual characters/dynamic traceability QR code/barcode/graphics/serial number/date/counter /variable database/network serial port real-time dynamic data printing... Carton/plastic/metal/plate/pipe/stone/cable/ electronic components/auto parts/industrial chemical packaging/medical food gift box 42ml food grade/water-based/oil-based/weak solvent/solvent ink cartridge,large-capacity ink bag continuous ink supply system Black,white,red,yellow,blue,green,invisible,UV RFID contactless chip,automaticidentification of ink parameters and recording of ink remaining |
|||
|
Main hardware Communication interface External interface Input method User management |
Cortex-A71.2GHzdual-core processor, FPGA algorithm acceleration chipset USB,RS232,TCP/IP network interface Photocell,encoder,alarm light,Ethernet, Support keyboard multi-language input Administrator account authority management, authorization management |
|||
|
Hard disk expansion SD card hard disk expansion | ||||
|
Power supply Machine material |
Power adapter 100-240VACinput,24V2.75A DCoutput Industrial standard protective body (aircraft grade aluminum) |
|||
|
Machinespecifications 128mm*87mm*27mm Workingenvironment Temperature 0-45°c/humidity 30-70%Rh | ||||
